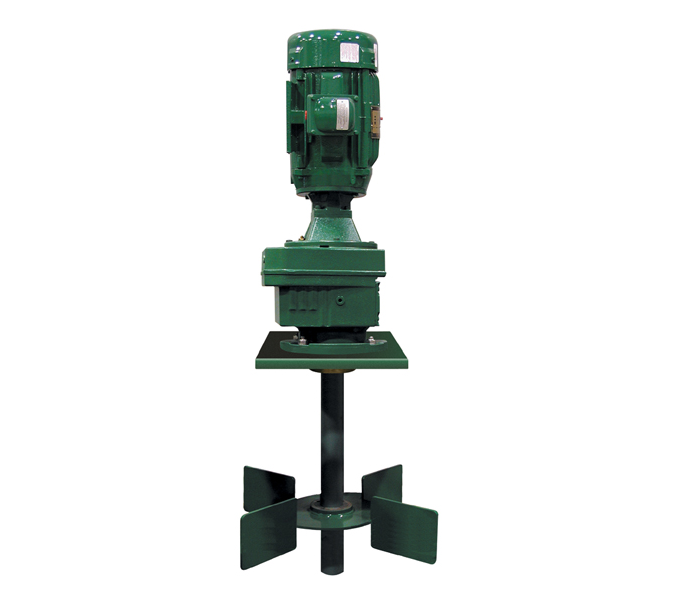

Mud agitator

drilling mud agitator suppliers

Mud agitator

This mug agitator is used in various surface mud systems to maintain a homogenous mixture and suspend solids throughout the system. The mechanical agitators are operated by an explosion-proof motor which is combined with a gearbox.
Category:

Contact

DESCRIPTION

This mug agitator is used in various surface mud systems to maintain a homogenous mixture and suspend solids throughout the system. The mechanical agitators are operated by an explosion-proof motor which is combined with a gearbox. This is meant to drive the impeller shaft. The impeller shaft then transforms the motor’s mechanical power into agitation to create a uniform suspension of all the solids.

Generally, there are different versions or models of mud agitators that are being offered to fulfill various customers’ needs more effectively. However, here are some of the most amazing features of these mud agitators’ range that you must know:

Mud agitator motor

Motor power of these mud agitators is ranging from 5.5 kW to 22 kW. You can easily choose the one which is more suitable for your mud agitator needs.

Mud agitator shaft and impellers

However, the impeller speed of these mud agitators is 60/72RPM. While, on the other hand, the shaft length of the mud agitator will depend on the size of the mud tank completely.

Durable agitator

Excellent capacity, longer service life, and high-quality materials along with sturdy construction are making these mud agitators highly durable and reliable.

Corrosion-resistant

The entire range of these mud agitators is highly demanding. It is mainly because of the state of art technology and quality of basic materials that is used in these. The fabrication used on these mud agitators makes this high corrosion resistant and can help you to enjoy a longer service life of mud agitators with ease.

Do you want to know what makes these mud agitators most amazing? Let’s have a look at the key benefits below to get a better idea about the things in this regard:

These mud agitators come up with C shape electric motor which is explosion-proof.

Flexible shaft length is effective for a more reliable experience.

All of these agitators are designed effectively for certain job requirements to offer more amazing and convenient solutions.

The mud agitator is lightweight than various other similar models.

So, that’s all you need to know about mud agitators. Make sure to choose the best version for you as per your unique requirements with ease.

A Mud Agitator is equipment that is used for a specific purpose – the mixing and agitation of mud. While doing so, it prevents the settlement of the solid phase particles in the tank, which is crucial for the recycling process. The Mud Agitator is basically a speed reducer that is combined with an explosion-proof motor. The motor is horizontally placed for a convenient installation. These elements of the Mud Agitator are basically what makes everything tick. Also, they are robust and easy to maintain, allowing the Mud Agitator to be used in harsh conditions.

The impellers in the Mud Agitator are responsible for ‘taking in’ the drilling fluid. There are single-layer and double-layer options that one can go for. A centering guide is also added if the tank depth increases to handle mixing and agitation of a high quantity of drilling fluid. This equipment also has a worm wheel and worm gear reducer drive for smooth and reliable operation. The mug agitator comes with a speed reducer and you can use it as per your needs.

Main features of the Mud Agitator

  • Impellers
  • Speed reducer
  • Explosion-proof motor
  • Centering Guide
  • Worm Wheel & Worm Gear Reducer drive

Technical Parameters of Mud agitator

Model ABJ BQ 5 . 5 ABJ BQ 7 . 5 ABJ BQ 1 1 ABJ BQ 1 5 ABJ BQ 1 8 . 5 ABJ BQ 2 2
Power 5 . 5 Kw 7 . 5 Kw 1 1 Kw 1 5 Kw 1 8 . 5 k w 2 2 k w
Impeller Speed 6 0 / 7 2 RP M
Impeller Dia 6 0 0 m m 7 5 0 / 7 5 0 m m 8 5 0 / 7 5 0 m m 9 5 0 / 8 5 0 m m 9 5 0 / 8 5 0 m m 1 0 0 0 / 9 5 0 m m
Ratio 1 : 2 5 / 1 : 2 0
  Dimension 8 7 0 x 6 0 0 x 5 6 0 9 0 6 x 6 0 0 x 5 6 0   1 0 7 5 x 6 5 0 x 6 3 0   1 1 7 0 x 7 2 0 x 6 8 5 1 2 7 0 x 1 0 0 0 x 7 2 7   1 2 7 0 x 1 0 0 0 x 7 2 7
Electric specs 2 2 0 - 2 4 0 V/ 5 0 H z , 3 8 0 - 4 1 5 V/ 5 0 H z , 4 4 0 - 4 8 0 V/ 6 0 H z , 5 7 5 - 6 0 0 V/ 6 0 H z
Shaft Length It depends on the depth of the mud tank
Approvals U L/ ATE X/ BV/ IADC / J AS - AN Z IS O 9 0 0 1 : 2 0 1 5 / C E
