Mud tank

Mud tank

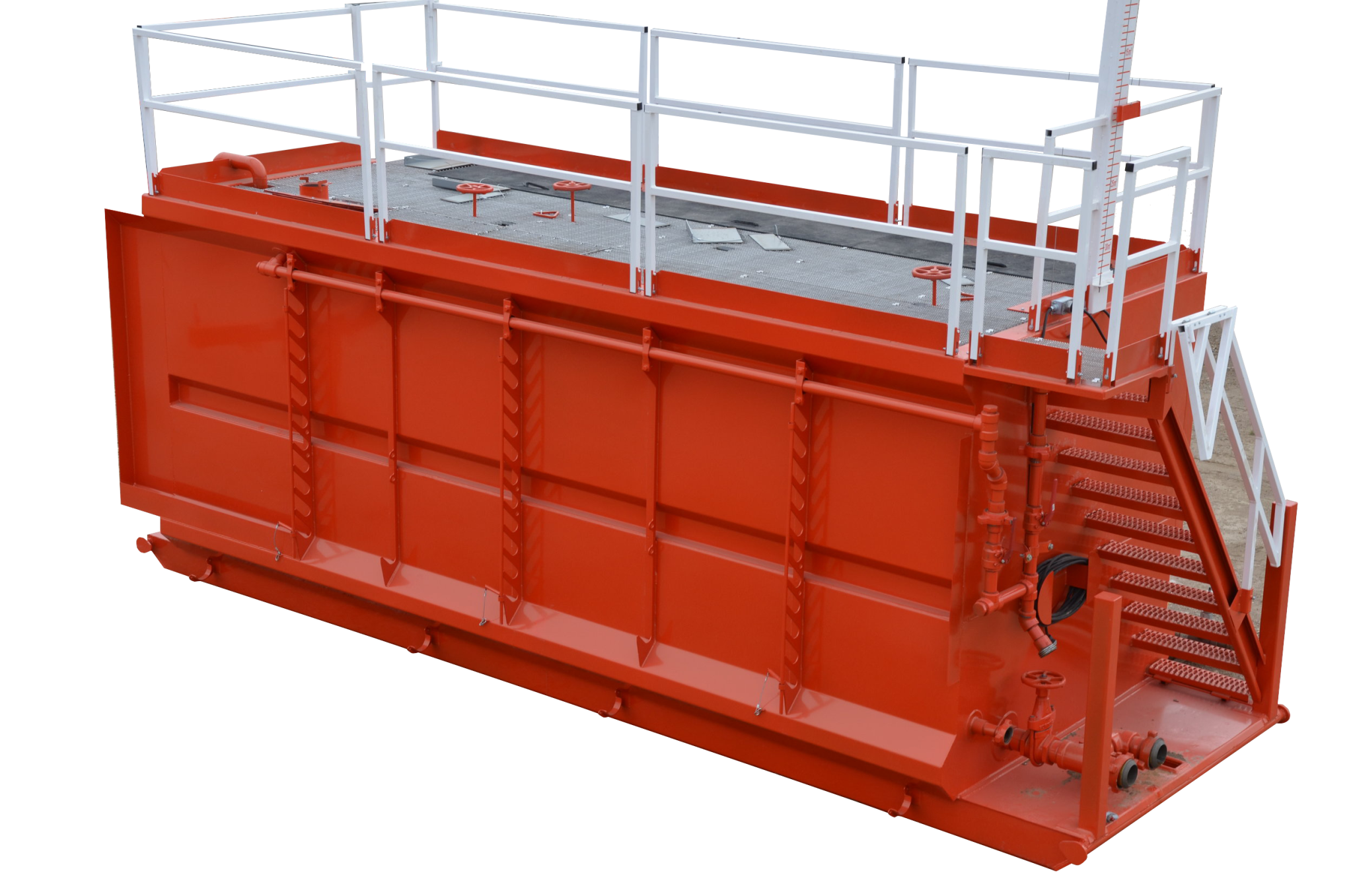

Mud tank is a container equipment for storing, handling and conditioning mud, which is widely used in oil and gas drilling as well as geological exploration. Mud tanks are often used in conjunction with solids control equipment to store and mix mud. Mud tanks can be fully customized to suit the working conditions and their shape, size, orientation and mobility can be tailored to the requirements.

Category:

Working Principle

Mud tank is a kind of container equipment for storing, treating and regulating mud, which is widely used in oil and gas drilling as well as geological exploration and other fields. During the drilling process, the mud returns from the wellhead and flows into the mud tank through the mud circulation system on the ground via the inlet pipe. Inside the mud tank, the mixing system works continuously to make the various components in the mud, such as clay, weighting agent, additives and so on, mix evenly. When mud is needed for drilling, the mud in the mud tank is transported to the drilling pump through the discharge pipe, and then the drilling pump pressurizes the mud to the wellhead and injects it into the bottom of the well through the drilling rods, thus realizing the recycling of mud.

Functions

  • Mud storage: Provide stable mud reserve for drilling operation, ensure sufficient mud supply during the long drilling process, avoid interruption of drilling due to insufficient mud.
  • Performance adjustment: According to the requirements of the drilling process, various chemical additives, such as thickening agent, filtration loss reduction agent, weighting agent, etc., can be conveniently added to the mud tank to adjust the mud’s density, viscosity, water loss and other properties, so as to adapt to the drilling needs of different stratigraphic conditions.
  • Solid-liquid separation: cooperate with solid control equipment to realize the separation of solid-phase particles and liquid phase in mud.

Mud tank Features & Benefits

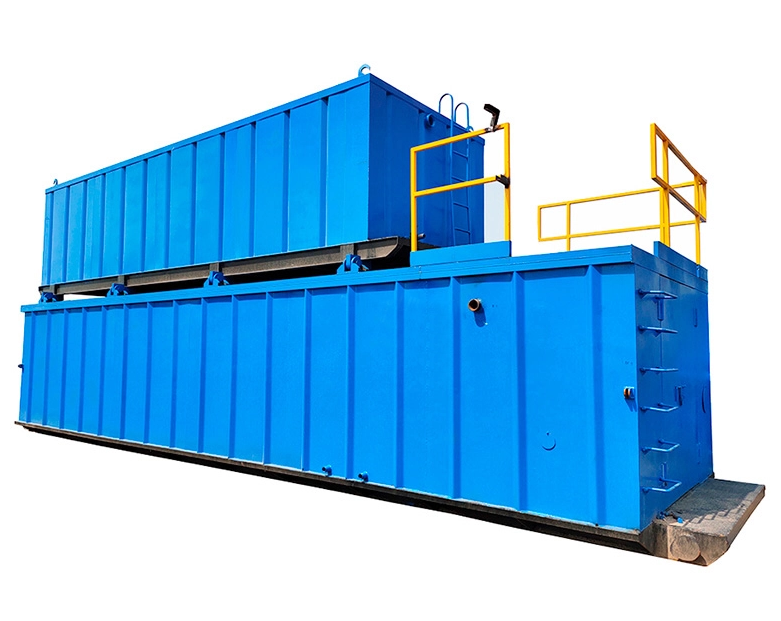

  • Solids control world sold various types of tank including mud tank, water tank, oil tank,ect.
  • Solids control world sold mud tanks are usually used to install solids control equipment, storage mud, mixing mud.
  • According to different working conditions, mud tanks can be customized into horizontal mud tank, vertical mud tank and trailer mounted mud tank.
  • High quality and low price.
Suited Drill RigTank AmountsTank Effective Dlmension(LxWxH)mmEffective VolumePurification level
Drilling Rig for 1000m37500x2400x2000903 Level
Drilling Rig for 2000m48000x2400x20001264 Level
Drilling Rig for 3000m48000x2400x20001264 Level
Drilling Rig for 4000m59000x2800x22001605 Level
Drilling Rig for 5000m610000x2800x25002205 Level
Drilling Rig for 6000m612000x2800x25003605 Level
Drilling Rig for 7000m812000x2800x25004805 Level
Drilling Rig for 8000m912000x2800x25006005 Level
