Replacement shaker screen
for MI-SWACO

This shaker screen is the replacement shaker screen of SWACO Mongoose screen, is a kind of steel frame screen, They are popular with most users since they can be replaced quickly and clamped by wedge block, SWACO Mongoose series screen are adaptable for MI-SWACO Mongoose and MEERKAT series shaker and mud cleaner.

Application area

Applications – in the oil and gas industry, namely drilling oil and gas wells.

Main design data:

MODEL:

SWACO MONGOOSE

MESH MATERIAL AND FRAME TYPE:

SS304丨STEEL

SIZE:

585х1165 ± 40 MM.

WEIGHT:

14.6 ± 0.3 KG

Packaging

1 pieces shaker screen in one carton

10-30 cartons in one  wooden case or 1400 cartons in one 40’ container

Replacement shaker screens for MI-Swaco

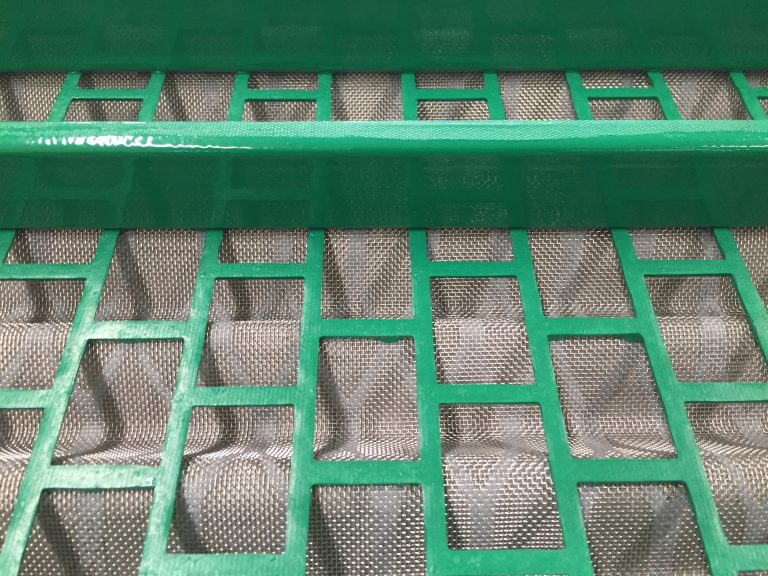

This shaker screen is the replacement shaker screen of SWACO Mongoose screen, is a kind of composite frame screen, high strength plastic and glass composite material that is reinforced with high-tensile strength steel rods. They are popular with most users since they can be replaced quickly and clamped by wedge block, SWACO Mongoose series screen are adaptable for MI-SWACO Mongoose and MEERKAT series shaker and mud cleaner.

Application area

Applications – in the oil and gas industry, namely drilling oil and gas wells.

Main design data:

MODEL:

SWACO Mongoose

MESH MATERIAL AND FRAME TYPE:

SS316丨Composite

SIZE:

585х1165 ± 2 MM.

WEIGHT:

11.0 ± 0.3 KG



Packaging

1 pieces shaker screen in one carton

10-30 cartons in one  wooden case or 1100 cartons in one 40’ container

This shaker screen is the replacement shaker screen of SWACO MD screen, is a kind of composite frame screen, high strength plastic and glass composite material that is reinforced with high-tensile strength steel rods. They are popular with most users since they can be replaced quickly and clamped by wedge block, SWACO MD series screen are adaptable for MI-SWACO MD-2 and MD-3 series shaker and mud cleaner.

Application area

Applications – in the oil and gas industry, namely drilling oil and gas wells.

Main design data:

MODEL:

SWACO MD

MESH MATERIAL AND FRAME TYPE:

Ss316丨Composite

SIZE:

630×650 ± 2 MM.

WEIGHT:

7.0 ± 0.3 KG



Packaging

1 pieces shaker screen in one carton

10-30 cartons in one  wooden case or 1300 cartons in one 20’ container

Precautions

  • Installing the screen must be aligned after tightening.
  • Please take out the shaker screen when setting the frequency and amplitude of the shale shaker.
  • Flushing the shaker screen every 30 hours with clean running water.
  • The product can be used in a high-humidity environment and open air, according to the rules and the operating temperature of the screen.
  • Stored in a dry room
