In the grand stage of oil and gas drilling operations, the solid control equipment is like a loyal guard, always guarding the safety and efficiency of drilling operations. It plays an irreplaceable key role in removing solid-phase particles in drilling fluid and maintaining stable performance of drilling fluid with its unique function and role.

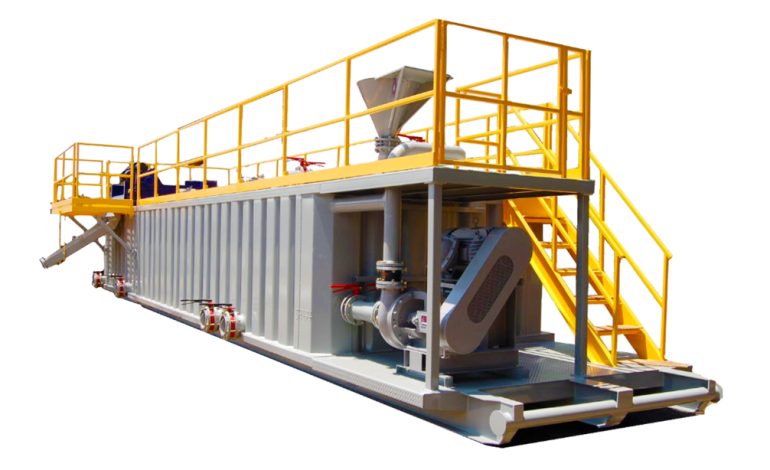

Importance of solid control equipment in drilling operation
Drilling fluid is known as the ‘life fluid’ of drilling operation, and plays multiple vital roles in the whole drilling process. It not only cools the high-speed rotating drill bit and takes away the huge heat generated by the friction between the drill bit and the rock, but also carries the rock cuttings back from the bottom of the well to ensure the unobstructed access of the drilling channel, and at the same time, balances the pressure of the stratum and prevents blowouts and other dangerous accidents from occurring. However, in the process of circulating the drilling fluid, various solid-phase particles, such as drill cuttings, silt sand, barite, etc., will inevitably be mixed in. If these solid-phase particles can not be effectively removed in time, it will bring a series of serious consequences to the drilling operation.
Reduced drilling fluid performance
Excessive solid-phase particles will significantly increase the density of the drilling fluid, making the drilling fluid heavier and increasing the difficulty of pumping and energy consumption. At the same time, the viscosity and shear force will also increase, resulting in poor fluidity of the drilling fluid and a significant reduction in the rock-carrying capacity. This not only affects the drilling efficiency, but may also cause rock chips to accumulate at the bottom of the well, affecting the normal drilling of the bit. Solid-phase particles also wear down drilling equipment like sandpaper, from the drill bit to the drill pipe to the mud pump and other components. In the long run, the service life of the equipment will be greatly shortened, increasing the cost and risk of drilling operations.
Affecting the stability of the well wall
The gradual accumulation of solid-phase particles around the well wall will gradually reduce the diameter of the borehole and increase the drilling resistance. This is similar to the build-up of debris in a pipe, where water flow becomes increasingly difficult. In extreme cases, this can even lead to wall collapse, posing a significant safety risk to the drilling operation. Certain solid-phase particles can also react in complex ways with chemicals in the drilling fluid to produce substances that are detrimental to the stability of the well wall. These substances may weaken the strength of the well wall and increase the risk of well wall destabilisation.
1.Damage to the formation
Once solid-phase particles enter the oil and gas formation, it is like putting heavy obstacles in the oil and gas channel, which will seriously block the oil and gas channel and reduce the oil and gas production and recovery rate. This is undoubtedly a huge blow to the efficient development of oil and gas resources. Solid-phase particles may also react with the fluids in the oil and gas layer to produce some harmful substances, causing pollution of the oil and gas layer. This will not only affect the production of the current well, but also may bring long-term adverse effects on the development of the neighbouring oil and gas reservoirs.The main types and working principles of solid control equipment
2.Vibrating Screen
As the first line of defence in the solid control equipment, the importance of vibrating screen is self-evident. It is mainly through the high-frequency vibration of the drilling fluid in the larger particles sieve, for the subsequent solid control equipment to reduce the burden. Working principle: drilling fluid slowly flows into the vibrating screen through the inlet, and under the action of powerful vibration motor, the screen mesh starts to vibrate at high frequency. The larger solid-phase particles cannot pass through the pores of the screen mesh and are retained on the screen mesh, forming a solid barrier. The finer particles and drilling fluid, on the other hand, pass through the screen mesh smoothly and flow into the next level of solid control equipment. The vibration frequency, amplitude and mesh size of the vibrating screen can be flexibly adjusted according to the nature of the drilling fluid and the size of the solid phase particles. For example, for drilling fluid with high viscosity, the vibration frequency can be appropriately reduced and the amplitude can be increased to improve the screening effect; while for drilling fluid containing smaller particles of solid phase, a higher mesh screen can be selected.
3.Desander and mud remover
Desander and mud remover are mainly responsible for removing fine sand and mud particles in drilling fluid to further purify the drilling fluid. Working Principle: Desanders and mud removers usually adopt the advanced cyclone separation principle. After the drilling fluid enters the cyclone at a certain pressure and flow rate, the solid-phase particles are rapidly thrown towards the wall under the action of strong centrifugal force generated by high-speed rotation. These solid-phase particles move downward along the wall and are finally discharged from the bottom flow port. The purified drilling fluid flows out from the overflow port and enters the next level of solid control equipment. The separation particle size of the desander and desilter can be precisely controlled by adjusting the cyclone size, pressure and feed flow rate. For example, when dealing with drilling fluids containing more fine sand, the pressure and feed flow rate of the cyclone can be appropriately increased to improve the separation effect; while for the case of more mud particles, a cyclone with smaller size can be selected to enhance the separation ability of mud particles.
4.Centrifuge
Centrifuge is a high-precision separation equipment in solid control equipment, which can remove extremely fine solid phase particles and low-density solid phase particles in drilling fluid and provide the last guarantee for the purification of drilling fluid. Working Principle: The centrifuge cleverly uses the effect of centrifugal force field to completely separate the solid-phase particles and liquid-phase in the drilling fluid. After the drilling fluid enters the high-speed rotating centrifuge drum, the solid-phase particles are thrown hard to the drum wall under the action of powerful centrifugal force. Driven by the spiral pusher, the solid-phase particles move towards the small end of the drum and are finally discharged from the slag discharge port. The purified drilling fluid, on the other hand, flows out of the overflow port and is reintroduced into the drilling operation. The separation effect of the centrifuge can be optimised by adjusting parameters such as rotational speed, feed flow rate and differential speed. For example, when finer solid-phase particles need to be removed, the rotational speed of the centrifuge can be increased appropriately; and for large processing capacity, the feed flow rate and differential speed can be adjusted to ensure a balance between separation effect and processing efficiency.
CleanerPrinciple of operation: The cleaner first removes larger solids through the vibrating screen to relieve the subsequent desander or desludger. Then, fine sand and mud particles are removed through the desander or mud remover to further purify the drilling fluid. This combined design not only improves the processing capacity and separation effect of the solid control equipment, but also reduces the footprint of the equipment, providing greater flexibility in the layout of the drilling operation site.
Key measures to ensure effective drilling operations
It is crucial to carefully select appropriate cementing control equipment based on a variety of factors such as the type of drilling operation, well depth, formation conditions and the nature of the drilling fluid. For example, in deep-well drilling, due to the large drilling depth, high formation pressure and long drilling fluid circulation cycle, it is necessary to select solid control equipment with large processing capacity and high separation precision to ensure that the drilling fluid always maintains good performance during the long circulation process. In drilling wells in collapse-prone formations, solid-control equipment that can effectively remove mud particles should be preferred to prevent mud particles from accumulating around the well wall, leading to well wall instability. At the same time, factors such as the reliability, maintenance cost and ease of operation of the cementing equipment also need to be considered. Selecting solid control equipment with reliable quality can reduce the occurrence of equipment failure and lower the risk of drilling operations. Equipment with low maintenance costs can reduce the total cost of drilling operations and improve economic efficiency. Easy-to-operate cementing equipment can reduce the work intensity of operators and improve work efficiency.
Reasonable layout of cementing equipment is the key to ensure that the drilling fluid can flow smoothly through each cementing equipment and reduce pipeline blockage and pressure loss. For example, arranging the vibrating screen near the wellhead can screen out the larger particles of solid phase in time, preventing these particles from entering the subsequent solid control equipment and causing equipment blockage and damage. Arranging the centrifuge at the end of the circulating system can carry out the final fine purification of the drilling fluid to ensure that the performance of the drilling fluid reaches the best state. Optimising the solidification control process and giving full play to the advantages of each solidification control equipment are also important means to improve the solidification control effect. For example, a multi-stage solid control process can be used to remove the solid phase of larger particles through the vibrating screen first, and then remove the solid phase of fine particles through the desander, desilter and centrifuge in turn. This step-by-step separation can improve the processing capacity and separation effect of the solid control equipment, and ensure that the solid phase particles in the drilling fluid are removed to the maximum extent.
Regular testing of drilling fluid performance parameters, such as density, viscosity, cutting force, sand content, etc., and timely adjusting the drilling fluid formula according to the test results are important measures to maintain stable drilling fluid performance. Maintaining the stable performance of drilling fluid can improve the separation effect of solid control equipment and the safety of drilling operation. For example, when the density of drilling fluid is too high, the density can be reduced by adding water or low-density treatments; when the viscosity and shear are too high, viscosity-reducing agents and shear-reducing agents can be added to adjust the performance. Reasonable use of drilling fluid additives, such as viscosity reducer, filtration loss reducer, plugging agent, etc., is also an effective way to improve the performance of drilling fluid. At the same time, attention should be paid to the compatibility of additives to avoid adverse reactions between different additives. For example, when selecting viscosity reducer, it is necessary to consider whether it is compatible with other additives in the drilling fluid, so as not to produce precipitation or reduce the effect of other additives.
Establishing a sound maintenance and management system for solid control equipment, and regularly inspecting, maintaining and repairing the equipment are the keys to ensure that the equipment is in good working condition. For example, regularly clean the vibrating screen mesh to prevent screen clogging; check the cyclone of the desander and desilter to ensure that it works properly; replace the wearing parts of the centrifuge to extend the service life of the equipment. Strengthen the training of solid control equipment operators to improve their operating skills and safety awareness is also an important part of ensuring the normal operation of solid control equipment. Operators should be familiar with the working principle of the solid control equipment, operating procedures and maintenance methods, in strict accordance with the operating procedures to avoid damage to the equipment due to improper operation. At the same time, to have a certain degree of safety awareness, to be able to timely find and deal with equipment operation in the security risks. Do a good job of solid control equipment operation records and failure analysis, timely summary of lessons learned, and constantly improve the management and maintenance of solid control equipment. Through the analysis of equipment operation records, you can understand the operating conditions of the equipment and the problems that exist for the maintenance and management of equipment to provide a basis. The analysis of faults can identify the cause of the failure, take appropriate measures to prevent, to avoid the recurrence of similar failures.
Solid control equipment development trend
With the rapid development of science and technology, solid control equipment will become more and more intelligent. For example, the use of automation control system can realise the automatic start and stop, parameter adjustment and fault diagnosis of the solid control equipment, and improve the operation efficiency and reliability of the equipment. The automated control system can automatically adjust the parameters of the solid-control equipment according to the performance parameters of the drilling fluid and the content of solid-phase particles to achieve the best solid-control effect. At the same time, when the equipment malfunctions, the system can automatically diagnose the cause of the malfunction and give the corresponding solution to reduce equipment downtime and improve the efficiency of drilling operations. Intelligent cementing equipment can also monitor the performance parameters of the drilling fluid and the content of solid-phase particles in real time through sensors, and automatically adjust the cementing process and equipment parameters according to the monitoring results to achieve the best cementing effect. Sensors can be installed in various parts of the drilling fluid circulation system to monitor the density, viscosity, sand content and other parameters of the drilling fluid, as well as the size and distribution of solid-phase particles in real time. These data can be sent to the central control system through wireless transmission technology, and the central control system automatically adjusts the parameters and process flow of the solidification control equipment according to these data, realising the intelligent operation of the solidification control equipment.
In order to meet the growing demand for drilling operations, solidification control equipment will continue to develop in the direction of high efficiency. For example, improving the processing capacity of vibrating screen, the separation efficiency of desander and desilter, and the rotational speed of centrifuge can greatly shorten the time of solidification control and improve the efficiency of drilling operation. By adopting advanced materials and manufacturing processes, the performance and reliability of the solidification control equipment can be improved, while reducing the weight and volume of the equipment for easy transport and installation. The use of new solid control equipment and technology, such as high-pressure pulse vibrating screen, ultrasonic desander, magnetic separation iron remover, etc., can further improve the solid control effect and processing capacity. High-pressure pulse vibrating screen can make use of high-pressure pulse airflow to impact the drilling fluid, so that the solid-phase particles can be dislodged from the screen more easily and the screening effect can be improved. Ultrasonic desander can make use of the vibration effect of ultrasonic waves to make the fine sand particles gather together for easy separation. Magnetic separation iron remover can use the effect of magnetic field to remove the magnetic solid phase particles in drilling fluid and improve the purity of drilling fluid.
In today’s increasingly stringent environmental requirements, solid control equipment will also become more and more environmentally friendly. For example, the use of closed solid control system can reduce the leakage and volatilisation of drilling fluid, and reduce the pollution to the environment. Closed solid control system can circulate the drilling fluid in the closed pipeline and equipment, avoiding the contact between the drilling fluid and the external environment and reducing the leakage and volatilisation of the drilling fluid. At the same time, the closed solid control system can also recycle and treat drilling fluids, realising the recycling of drilling fluids and reducing pollution to the environment. The development of environmentally friendly drilling fluids and solid control equipment, such as biodegradable drilling fluids and low-noise solid control equipment, can reduce the impact on the environment and achieve green drilling. Biodegradable drilling fluids can be decomposed by microorganisms in the natural environment and will not pollute soil and water. Low-noise cementing equipment can reduce the noise pollution of drilling operation to the surrounding environment and improve the environmental protection of drilling operation.
In conclusion, cementing equipment is an important guarantee to ensure safe and efficient drilling operations. Through reasonable selection of cementing equipment, optimisation of layout and process, strict control of drilling fluid performance, and strengthening of equipment maintenance and management, the effect of cementing can be effectively improved to ensure the smooth progress of drilling operations. At the same time, with the continuous progress of science and technology, the cementing control equipment will continue to develop in the direction of intelligence, high efficiency and environmental protection, so as to make greater contributions to the development of oil and gas drilling.
