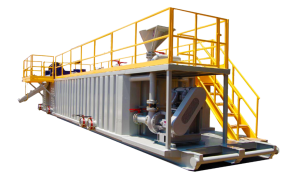

Mud tank is a kind of container equipment for storing, treating and conditioning mud, which is widely used in oil and gas drilling and geological exploration. Mud tanks are usually used in conjunction with solids control equipment to store and mix mud. In many fields such as oil drilling and trenchless construction, mud tanks play an indispensable role as a key component of the mud circulation system.
一.Diversified structural design of mud tanks
1.Square tank: square tank is the more common form of structure, the bottom of the tank is square or rectangular. The advantages of this type of structure are strong stability, easy to manufacture and transport. In large-scale operation scenarios such as oil drilling, square tanks are able to quickly set up a mud circulation system through standardised design and production.
2.U-shaped (rounded bottom) tanks: U-shaped mud tanks, also known as rounded bottom tanks, have a U-shaped rounded bottom. This unique design facilitates the uniform distribution and discharge of slurry. When the slurry flows in the tank, the rounded bottom reduces the dead space at the bottom of the tank, making the slurry flow more smoothly and less likely to precipitate. In some operations that require high mud quality, such as horizontal directional traversing construction, the U-shaped tank can better ensure the stability of mud performance and reduce the problem of mud performance degradation caused by sedimentation, thus improving the accuracy and success rate of construction.
3.Round or Oval Tanks: Tanks with round or oval bottoms are typically used in larger slurry storage and handling systems. The round or oval shape is better able to withstand the pressure of the mud inside and provides greater stability during high volume storage.
4.Vehicle-mounted (trailer-mounted) mud tanks:vehicle-mounted mud tanksare mounted on a trailer with high mobility. It is suitable for all kinds of field construction environment, and can follow the construction team to move quickly. When carrying out non-excavation construction such as pipeline laying in some mountainous or remote areas with inconvenient traffic and scattered workplaces, the vehicle-mounted mud tank can conveniently transport the slurry to the construction site and provide timely slurry support for the construction, which greatly improves the flexibility and efficiency of the construction.
二.Functions and functions of mud tanks
1.Mud storage function
Mud storage: the primary function of mud tank is to store mud to ensure sufficient mud supply during drilling or construction. In oil drilling operations, due to the depth of the well, the complexity of the formation and other factors, the consumption of mud is huge. Mud tanks need to be stocked with large quantities of mud to meet the demands of long hours of continuous operation.
Balancing the mud volume: During the process of starting drilling and drilling down, the mud volume in the borehole will change. When starting drilling, the drill pipe is raised from the well, and the mud in the borehole will flow back into the mud tank, resulting in an increase in the mud volume in the mud tank; when drilling down, the drill pipe is lowered into the borehole, which will squeeze out the mud in the borehole, so that the volume of the mud in the mud tank will decrease. The mud tank can effectively balance this volume change and ensure the stable operation of the whole mud circulation system.
2.Mud processing function
Solid-phase particle separation: Through the solid-control equipment integrated on the tank, the mud tank is able to separate the solid-phase particles in the mud step by step. This process is important for improving mud quality, protecting drilling equipment and reducing environmental pollution.
Adjustment of mud performance: the mixing and blending system equipped in the mud tank can adjust the performance of mud. In the process of drilling, according to different formation conditions and drilling process requirements, it is necessary to constantly adjust the density, viscosity, water loss rate and other performance parameters of the mud. The mixing system of the mud tank can accurately add various additives and weighting agents according to the actual needs, and quickly adjust the mud performance to meet the needs of drilling operations.
三.Tank Material Selection
1.Carbon steel material: carbon steel is one of the common materials used to make mud tank body. Carbon steel has high strength and good toughness, and can meet the requirements of most mud tanks. Its cost is relatively low, easy to process and welding, widely used in oil drilling and other industries, but prone to corrosion.
2.Low-alloy steel materials: in order to improve the corrosion resistance of the tank, some mud tanks will be selected containing chromium, nickel and other elements of low-alloy steel materials. These alloy elements can form a layer of dense oxide film on the surface of the steel, effectively preventing the erosion of corrosive media, improve the corrosion resistance of steel.
3.Stainless steel materials:stainless steel has excellent corrosion resistance, oxidation resistance and aesthetics, in some of the mud tankperformance requirements are extremely high occasions, such as food processing, pharmaceutical and other industries, slurry storage and processing, stainless steel will be used to make the tank. In the pharmaceutical industry’s wastewater treatment process, need to ensure that the slurry will not cause pollution to the environment and products, stainless steel mud tanks can meet this strict requirement.
四.Influence factors of material selection
1.Use of the environment: the use of mud tank environment is an important factor affecting the choice of materials. In land drilling, if the soil and water quality of the operation area are less corrosive to the tank, and the ambient temperature does not change much, the carbon steel material can meet the use requirements after appropriate anti-corrosion treatment. However, in the marine environment, due to the high salinity, high humidity and strong corrosiveness of seawater, it is necessary to use low alloy steel or stainless steel materials with strong corrosion resistance. In cold regions, the material also needs to have good low-temperature toughness to prevent brittle fracture in low-temperature environments.
2.Mud properties: The nature of the mud, including acidity, alkalinity, solid content, corrosivity, etc., also plays a key role in the selection of tank materials. If the slurry is acidic or alkaline, with strong corrosive properties, you need to choose acid and alkali corrosion-resistant materials. In some mining projects, the slurry contains a large number of acidic substances, this time stainless steel or special anti-corrosion treatment of the material is more appropriate. The content and hardness of solid phase particles in the slurry will also affect the choice of material. If the slurry contains a large number of hard solid-phase particles, in the slurry circulation process will produce greater wear and tear on the tank wall, this time you need to choose good wear-resistant materials, or increase the wear-resistant lining inside the tank.
五.Material protection and maintenance
1.Anti-corrosion coating: No matter what materials are used to make mud tanks, anti-corrosion coating is one of the common protective measures. Anti-corrosion coating can form a layer of protective film on the surface of the tank, isolate the medium and the tank material contact, slow down the corrosion rate. Commonly used anti-corrosion coatings are epoxy paint, polyurethane paint and so on. Before applying the anti-corrosion coating, the surface of the tank needs to be strictly pre-treated, such as descaling, de-oiling, etc., in order to ensure the adhesion of the coating to the tank surface. For mud tanks made of carbon steel, under general environment, coating two layers of epoxy primer and one layer of polyurethane top coat can effectively extend the service life of the tank. Regular inspection and maintenance of the anti-corrosion coating, and timely repair of the damaged coating are also important measures to ensure the anti-corrosion effect.
2.Lining technology: in some of the very high corrosion resistance requirements of the occasion, will be used to protect the tank lining technology. The lining material can be rubber, plastic and so on. Rubber lining has good flexibility and corrosion resistance, can effectively resist the slurry in the acid and alkali corrosive media. Plastic lining such as polyethylene (PE), polypropylene (PP), etc., has excellent chemical stability and wear resistance. In the chemical industry slurry storage tanks, rubber lining or plastic lining is often used to improve the corrosion resistance of the tank. The construction quality of the lining is crucial to the protective effect, and requires a professional construction team to carry out the construction in accordance with strict process requirements, to ensure that the lining and the tank body fit tightly, without bubbles and cracks.
3.Regular testing and maintenance: In order to ensure the safe and reliable operation of the mud tank, regular testing and maintenance is essential. Regular inspection of the appearance of the tank to see if there is corrosion, deformation, cracks and other defects. For tanks with anti-corrosion coating or lining, check whether the coating or lining is broken, peeling and so on. According to the test results, formulate the corresponding maintenance plan, and repair and deal with the problems found in a timely manner. Regular maintenance and repair of the ancillary equipment of the mud tank, such as mixing devices, valves, pipelines, etc., to ensure the normal operation of the equipment is also an important link to protect the overall performance of the mud tank.
As the core equipment of mud circulation system, the technical features and functions of mud tank directly affect the efficiency, quality and safety of oil drilling, non-excavation construction and other operations. Diversified structural design, advanced modularity and intelligent control technology, as well as efficient solid control and mixing technology, make the mud tank can adapt to different operating environments and process requirements. In the selection of tank materials, it is necessary to take into account the use of the environment, the nature of the slurry, the cost and regulations and standards and other factors, choose the right material and take effective protection and maintenance measures to ensure the long-term stable operation of the mud tank.
