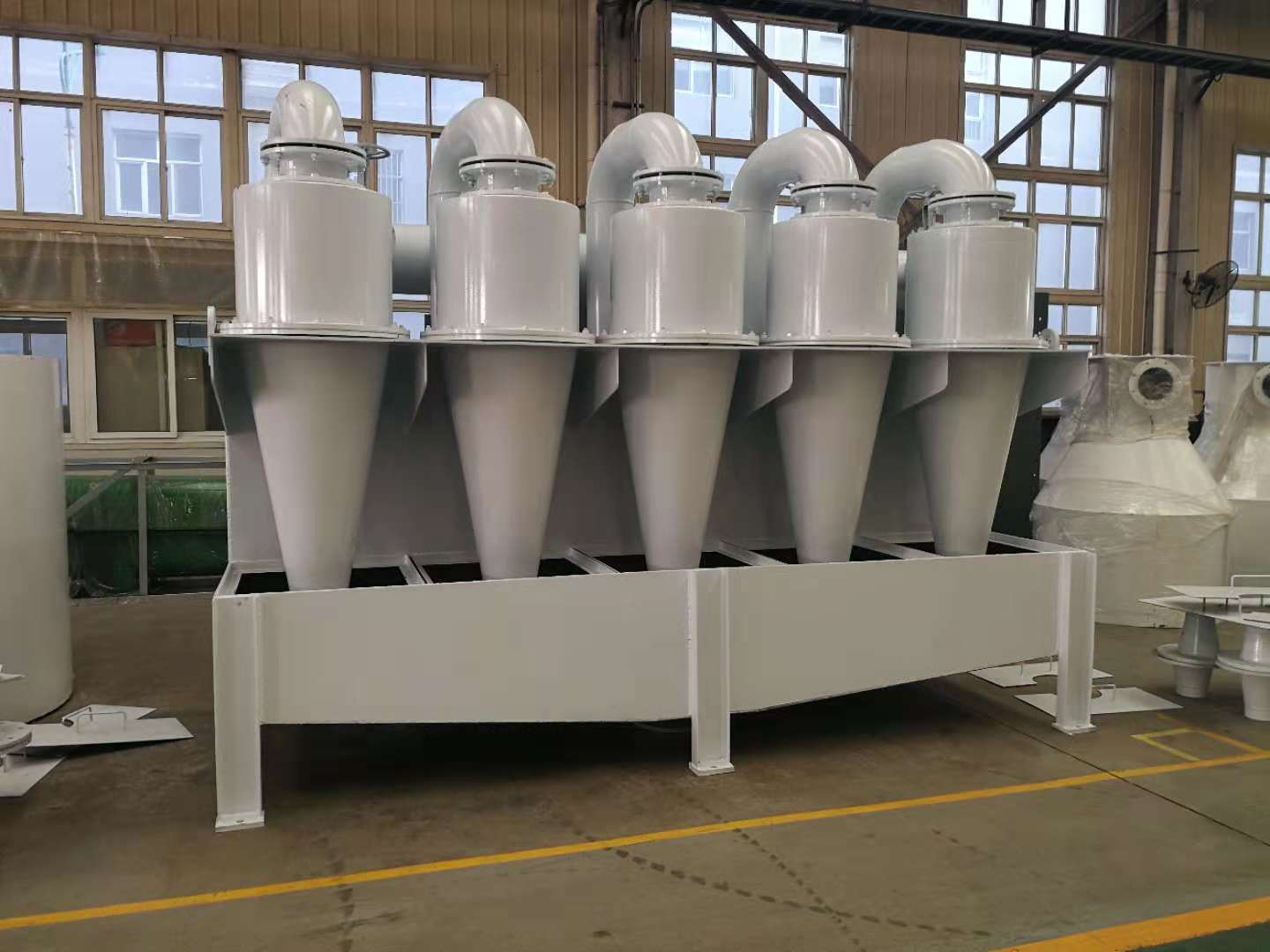

In industrial production, hydrocyclone, as a kind of high-efficiency separation equipment, is widely used in mineral processing, petroleum, chemical industry, sewage treatment and many other fields. It relies on centrifugal force to achieve the separation of materials of different densities or particle sizes, and has the advantages of simple structure, small footprint, and large handling capacity. However, to ensure that the hydrocyclone always maintains a good operating condition and gives full play to its best performance, routine maintenance and troubleshooting are crucial. In this paper, we will introduce in detail the daily maintenance of hydrocyclone and common troubleshooting methods.
一.The daily maintenance points
1.Equipment inspection
Appearance check
The appearance of the hydrocyclone should be inspected every day to see if there is wear and tear, cracks or deformation of the equipment shell. Pay special attention to the connection parts, such as flanges, pipe connections, to ensure good sealing, no leakage. Once leakage is found, bolts should be tightened or gaskets should be replaced in time to prevent environmental pollution and production loss caused by material leakage.
Internal parts inspection
Open the hydrocyclone regularly to check the wear and tear of internal parts. Among them, the overflow pipe, underflow pipe, feed pipe and the cone and cylinder part of the cyclone are the key areas of wear. For parts with serious wear, they should be replaced in time so as not to affect the separation effect. For example, the wear of the overflow pipe will lead to the coarsening of the overflow particle size, affecting product quality; the wear of the underflow pipe may cause the bottom flow to be unsmooth, triggering clogging.
2.Monitoring of operating parameters
Pressure monitoring
Feed pressure is one of the key parameters of hydrocyclone operation. The feed pressure is monitored in real time through the pressure gauge installed on the feed pipe. Generally speaking, each type of hydrocyclone has its appropriate working pressure range. Too high a pressure may lead to increased wear and tear of the equipment, or even damage to the equipment; too low a pressure will make the separation effect worse. When abnormal fluctuations in pressure are found, the causes should be investigated in time, such as whether the pipeline is clogged or not, and whether the working condition of the pump is normal or not.
Flow monitoring
Accurately grasp the feed flow is also very important to ensure the stable operation of the hydrocyclone. You can use a flow meter to monitor the feed flow and adjust it according to the requirements of the production process. The flow rate is too large or too small will affect the separation efficiency, should ensure that the flow rate is within the design range of the equipment. At the same time, pay attention to observe the stability of the flow rate, if the flow rate fluctuates greatly, it may be due to unstable feed system or air in the pipeline.
3.lubrication and maintenance
Bearing lubrication
If the hydrocyclone is equipped with bearings, lubricate the bearings regularly. Use suitable lubricants and refill them at specified intervals. Good lubrication can reduce the wear and tear of the bearings and extend their service life, while reducing the noise and vibration of the equipment during operation. When filling the lubricant, be careful to avoid overfilling, so as not to cause grease leakage and contaminate the material.
Equipment cleaning
Clean the hydrocyclone and its surroundings regularly. Remove the dust on the surface of the equipment, material accumulation, etc., to keep the equipment neat and clean. For some parts that are easy to accumulate dust, such as motors, control cabinets, etc., it is more important to strengthen the cleaning to prevent dust from entering the interior of the equipment, affecting the normal operation of the equipment. In addition, regular anti-rust treatment of the equipment, especially in the humid environment, can extend the service life of the equipment.
二.Common faults and troubleshooting methods
1.Separation efficiency decline
Cause analysis
Unstable feed pressure: As mentioned above, the fluctuation of feed pressure will directly affect the separation effect of hydrocyclone. When the pressure is unstable, the centrifugal force field will also change, resulting in the movement of materials in the cyclone trajectory disorder, unable to achieve effective separation.
Wear and tear of equipment: the wear and tear of the overflow pipe, underflow pipe, cone and other components will change the internal structure of the hydrocyclone, so that the distribution of the flow field changes, which in turn reduces the separation efficiency. For example, after the overflow pipe is worn, its diameter becomes larger, and the overflow speed is reduced, which will make some coarse particles that should be discharged from the underflow mix into the overflow.
Material nature changes: If the material into the hydrocyclone particle size, density, concentration and other properties of large changes, and the operating parameters of the equipment is not adjusted in a timely manner, will also lead to a decline in separation efficiency. For example, the material concentration is too high, which will enhance the mutual interference between the particles and affect the separation effect.
Elimination methods
Stabilise the feed pressure: check the working status of the feed pump to ensure that its output pressure is stable. Pressure stabilising devices, such as buffer tanks, can be installed to reduce pressure fluctuations. At the same time, check the piping system regularly, remove the debris and deposits in the pipeline to ensure that the pipeline is unobstructed.
Replacement of worn parts: according to the wear and tear of the equipment, replace the parts with serious wear and tear in time. When choosing replacement parts, make sure that their quality and specifications are consistent with the original parts to ensure the performance of the equipment.
Adjustment of operating parameters: When the nature of the material changes, it is necessary to readjust the operating parameters such as feed pressure, flow rate, concentration, etc. through tests or empirical formulas to adapt to the changes in the material and improve the separation efficiency.
2.Bottom flow clogging
Cause analysis
The content of coarse particles in the material is too high: If the content of coarse particles in the material entering the hydrocyclone exceeds the processing capacity of the equipment, it is easy to pile up at the bottom flow mouth, resulting in blockage.
The size of the underflow port is too small: the size of the underflow port is designed according to the nature of the material and the processing requirements, if the size of the underflow port is too small in practice, it can’t meet the discharge requirements of coarse particles, which will also lead to clogging.
There are debris inside the equipment: during the installation or operation of the equipment, there may be debris into the hydrocyclone interior, such as tools, welding residues, etc., these debris will be stuck in the underflow opening, triggering clogging.
Elimination methods
Control the feed size: Before feeding, pre-treat the material, such as through screening and other ways to remove oversized particles, to ensure that the particle size of the material entering the hydrocyclone meets the requirements of the equipment.
Adjust the size of the underflow opening: according to the actual situation of the material, reasonably adjust the size of the underflow opening. If the size of the bottom flow opening is too small, it can be expanded appropriately; but note that the change in the size of the bottom flow opening will affect the separation effect, and it is necessary to re-commission.
Clean up the internal debris of the equipment: open the hydrocyclone regularly, check whether there are debris inside, and clean up in time. In the process of equipment installation and maintenance, we should strictly abide by the operating procedures to prevent debris from entering the equipment.
3.Excessive equipment vibration
Cause analysis
Equipment installation is not solid: If the hydrocyclone is not fixed during installation, or the foundation is not flat, vibration will occur when the equipment is running. This vibration will not only affect the normal operation of the equipment, but may also lead to loose and damaged equipment parts.
Bearing damage: as mentioned earlier, the bearing is one of the important parts of the hydrocyclone. When the bearings are worn or damaged, it will cause the rotating parts of the equipment to be unbalanced, thus generating severe vibration. At the same time, it may also be accompanied by abnormal noise.
Uneven distribution of materials: If the materials entering the hydrocyclone are unevenly distributed, it will make the internal force of the equipment uneven and cause vibration. For example, the position of the feed pipe is unreasonable, resulting in the material being biased to one side into the cyclone, this situation will occur.
Troubleshooting methods
Check the installation of the equipment: re-check the installation of the equipment to ensure that the equipment is firmly fixed and the foundation is level. For loose bolts, tighten them in time; for uneven foundation, adjust or reinforce it.
Replacement of bearings: when the bearings are found to be damaged, they should be replaced in time. When replacing the bearings, choose reliable quality products and install them according to the correct installation method. At the same time, the bearings should be inspected and maintained regularly, so that problems can be found and solved in time.
Adjust the feeding method: optimise the layout of the feeding pipe so that the material can enter the hydrocyclone evenly. Auxiliary devices such as fabricator can be installed to improve the distribution of materials and reduce equipment vibration.
Routine maintenance and troubleshooting of hydrocyclone is the key link to ensure its stable operation, improve the separation efficiency and extend the service life of the equipment. Through regular equipment inspection, monitoring of operating parameters, lubrication and maintenance and other routine maintenance work, potential problems can be found in a timely manner to take effective preventive measures to avoid failure. And when the failure occurs, can accurately analyse the cause of the failure, and quickly take the corresponding elimination methods, so that the equipment as soon as possible to return to normal operation, to protect the continuity and stability of industrial production is of great significance.
