In the solid control system, mud agitator and mud gun both play a vital role, although they are both committed to maintaining the good performance of the mud, but in a number of aspects there are obvious differences.
Difference in operation principle
Mud Mixer
1. Mechanical mixing mechanism
Mud agitator mainly realizes the stirring of mud through mechanical stirring. It usually consists of motor, reducer, mixing shaft and mixing impeller and other components. The motor provides power, and through the deceleration of the reducer, it converts the high speed into low speed suitable for mixing, drives the mixing shaft to rotate, and then makes the mixing impeller rotate in the mud.
2. Role of mixing impeller
The design shape and structure of mixing impeller play a key role in the mixing effect. Generally speaking, there are various shapes of impellers, such as propeller type, turbine type and so on. Propeller type impeller can produce axial thrust, so that the mud in the tank to form up and down circulation flow; turbine type impeller can produce strong radial flow, so that the mud in the tank to form a vortex flow. Different shapes of impellers are suitable for different types of slurry and mixing needs.
3. Continuous and stable mixing
Once the mud agitator is activated, it is able to agitate the mud continuously. This stable mixing action can effectively prevent solid particles in the slurry from settling and maintain the uniformity of the slurry. Especially for mud stored for a long time or recycled, the mud agitator can ensure that the mud is always in good condition.

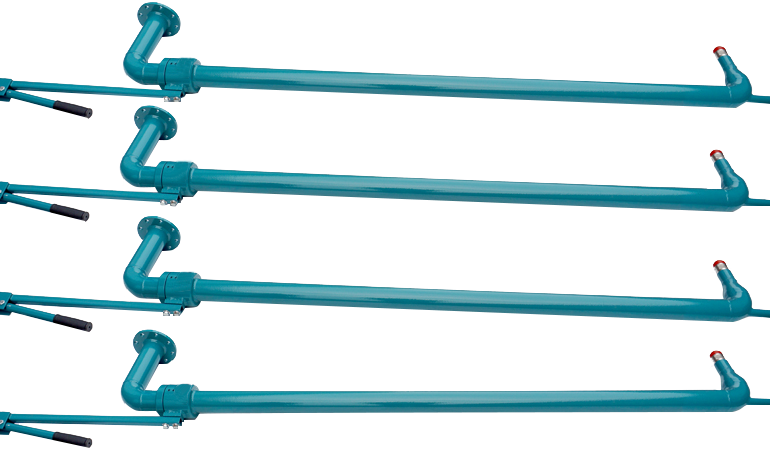

Mud gun
1. High-pressure fluid injection principle
Mud guns utilize the injection of high pressure fluids (usually mud or water) to mix the mud. The fluid is pressurized by a pump and then ejected from the nozzle to form high-speed jets. These high-speed jets impact the mud, causing turbulence in the mud, thus achieving the purpose of mixing.
2. Nozzle design and spraying effect
The nozzle design of the slurry gun has a great influence on the mixing effect. Different shapes and angles of nozzles can produce different spray patterns and impact forces. For example, the fan-shaped nozzle can produce a wide spray surface, suitable for large areas of mud mixing; straight nozzle can produce a concentrated impact, suitable for local sedimentation of more serious areas.
3. Intermittent mixing
Unlike the continuous mixing of a slurry mixer, a slurry gun is usually operated intermittently. It can be started and stopped as often as required to cope with different mixing needs. In some cases, the mud gun can be used in conjunction with other equipment to realize more flexible mixing control.
Difference in installation position
Mud agitator
1. Mud tank top or side installation
The mud agitator is usually installed on the top or side of the mud tank. When installed at the top, the mixing shaft of the agitator is inserted vertically into the mud, and the impeller mixes below the surface of the mud. This type of installation allows the agitator to act directly on the upper layer of the slurry, which is conducive to preventing solid particles from settling on the surface of the slurry. In side installation, the mixing shaft of the agitator is at an angle with the side wall of the mud tank, and the impeller mixes at the side of the mud tank. This type of installation allows the agitator to agitate the sides and bottom of the slurry tank more effectively.
2. Layout of multiple agitators
Due to the large size of the mud tank, in order to ensure adequate mixing of the mud, usually in each mud tank will be installed multiple agitators. These agitators can be evenly distributed in different positions of the mud tank to form a complete mixing system. For example, on a large slurry tank, multiple agitators can be installed on the top and sides to achieve an all-round mixing effect.
3. Considerations for installation location
When choosing the installation location of the mud agitator, several factors need to be considered. First, it is necessary to ensure that the agitator can effectively cover the entire slurry tank to avoid dead spots for mixing. Second, consider the ease of maintenance and overhaul of the agitator. Agitators mounted on the top are relatively easy to maintain but may be subject to space constraints; agitators mounted on the sides require more space but may be relatively difficult to maintain. It is also necessary to consider the nature of the slurry and the mixing requirements to select the most suitable installation position.
Mud gun
1. Flexible installation location options
The mud gun can be installed in different positions of the mud tank, such as the tank wall, tank bottom, etc.. The choice of its installation position is very flexible and can be adjusted according to the specific mixing needs. For example, installing the slurry gun on the tank wall can agitate the slurry near the wall and prevent the slurry from settling on the wall; installing the slurry gun at the bottom of the tank can impact the sediment at the bottom of the tank and make it resuspended in the slurry.
2. Adjustable nozzle direction and angle
The nozzle direction and angle of the slurry gun can be adjusted as needed. This allows the slurry gun to target different mixing zones with precision. For example, adjusting the nozzle to spray upwards allows agitation of the upper layer of the slurry tank, while adjusting the nozzle to spray downwards allows impact on the sediment at the bottom of the tank. By adjusting the direction and angle of the nozzle, the best mixing effect can be realized.
3. Influence factors of installation position
The installation position of the slurry gun mainly depends on the mixing demand and the structure of the slurry tank. If focused mixing is required for a specific area, the mud gun can be installed near that area. It is also important to consider the ease of installation and maintenance of the slurry gun, as well as its use in conjunction with other equipment. For example, when installing the mud gun, it is necessary to ensure that it is easy to connect with mud pumps, pipelines and other equipment, so as to avoid problems such as pipe blockage.
Difference in mixing effect
Mud mixer
1. uniform mixing
Mud mixer can be more uniform mixing of mud. As the mixing impeller in the mud continues to rotate, can make the mud in the solid particles and liquid fully mixed to avoid local precipitation or stratification phenomenon. This uniform mixing effect is essential to maintain the stability and performance of the mud.
2. Adapt to high viscosity mud
For high viscosity mud, the mud mixer can also have a good mixing effect. Its strong mechanical mixing force can overcome the resistance of high viscosity mud and keep the solid particles in the mud in suspension. This is especially important in some special drilling operations, such as deep well drilling and horizontal well drilling.
3. Stability of stirring effect
The mixing effect of the mud mixer is relatively stable and not affected by external factors. Once installed and commissioned, as long as the motor and reducer and other equipment operate normally, the agitator will be able to continuously provide stable mixing force to ensure the quality of mud.
Mud gun
1. Localized strong agitation
Mud gun can produce strong turbulence in the local area, for the more serious sedimentation area has a better mixing effect. Its high-speed jet can quickly impact the solid particles of sedimentation, so that they are re-suspended in the mud. This localized strong mixing effect can improve the performance of the mud in a short time.
2. Uneven mixing
However, the mixing effect of the mud gun may be uneven. Since it achieves mixing by spraying high-pressure fluid, the mixing effect may be relatively weak in areas outside the spraying range. This requires multiple slurry guns to be used in conjunction to achieve uniform mixing throughout the slurry tank.
3. Targeted mixing of specific areas
Mud guns can be used to target specific areas as needed. For example, in the mud tank near the entrance and exit, around the filter and other areas prone to sedimentation, you can install a mud gun for focused mixing to improve the efficiency of the solid control system.
Differences in scope of application
Mud agitator
1. Widely applicable to a variety of mud
Mud agitator is applicable to various types of mud, including water-based mud, oil-based mud, synthetic-based mud and so on. Regardless of the viscosity, density and solid content of the mud, the mud agitator is able to play its role of mixing and maintain the uniformity and stability of the mud.
2. Mud for long-term storage and recycling
In drilling and completion operations, mud needs to be stored or recycled for a long time. The mud agitator can continuously agitate the mud, prevent solid particles from settling, and ensure that the mud always maintains good performance during long-term storage and recycling.
3. Necessary equipment for large solid control systems
In the large solid control system, mud mixer is one of the essential equipment. Due to the large size of the large mud tank, multiple agitators need to work together to realize the full mixing of the mud. Therefore, the mud agitator plays a vital role in the large solid control system.
Mud gun
1. Scene of rapid mixing needs
Mud gun is suitable for situations that require rapid mixing. For example, in operations such as mud tank cleaning and mud treatment, the mud needs to be strongly agitated in a short period of time to remove impurities and sedimentation from it. The high-speed jet of the slurry gun can quickly achieve this goal.
2. Heavy sedimentation
When the sedimentation of solid particles in the mud is more serious, the mud gun can be used as an effective auxiliary mixing equipment. It can focus on the precipitation area, so that the solid particles resuspended in the slurry, improve the processing efficiency of the solid control system.
3. Auxiliary equipment for special solid control system
In some special solid control systems, such as offshore drilling platforms, due to the limited space and complex operating environment, the mud gun can be used as auxiliary mixing equipment. It can be used in conjunction with other equipment such as mud agitator to realize more flexible mixing control and meet the special operational requirements.
To summarize, mud agitator and mud gun each has its unique role and advantages in the solid control system. Mud agitator realizes continuous and stable uniform mixing through mechanical stirring, which is suitable for all kinds of mud and long-term storage and recycling scenarios; mud gun realizes local strong mixing by using high-pressure fluid injection, which is suitable for rapid mixing demand and serious precipitation situation. In actual application, these two types of equipment should be reasonably selected and used together according to the specific needs of the solid control system and operating conditions, in order to ensure the performance of the slurry and the efficient operation of the solid control system.
