Mud cleaners are an integral part of the solids control system, and their basic concept involves purifying the mud produced during the drilling process to remove solid particles from it, thus ensuring mud performance and drilling efficiency. In the field of oil drilling, the efficiency of mud cleaners has a direct impact on the cost and safety of the overall drilling operation. In addition, mud cleaner performance is closely related to drilling speed and borehole stability. An efficient mud cleaner ensures timely removal of solid particles from the drilling fluid circulating system, thus avoiding risks such as clogging and wall collapse that may occur during the drilling process.
一.The role of mud cleaners in solid control systems
The core objective of a solids control system is to optimise mud performance, extend bit life, reduce equipment wear and ensure smooth drilling operations by separating and removing solids generated during the drilling process. The mud cleaner is typically located at the back end of the drilling fluid circulation system, adjacent to the drilling fluid handling equipment. By efficiently separating solid particles generated during the drilling process, it can significantly reduce the solids content in the drilling fluid, thereby improving the fluidity and carrying capacity of the mud, and significantly improving the overall efficiency of the solids control system. In the solids control system, the mud cleaner’s position and role can be likened to that of a ‘filter’, which filters out impurities in the drilling fluid, ensures that the drilling fluid is recycled, and maintains the continuity and safety of drilling operations.
1.Efficient removal of solid-phase particles
The mud cleaner is like a ‘scavenger’ for solid phase particles. It can accurately capture and remove those tiny solid-phase particles missed by the primary shaker. If these small particles remain in the mud during drilling operations, they can cause severe wear and tear on equipment such as drill bits, drill pipe and pumps. The Mud Cleaner achieves a very high level of purification by cleverly combining a cyclone with a vibrating screen. The cyclone uses centrifugal force to separate the heavier solid phase particles, which are discharged from the underflow. The cyclone underflow is then further screened by a vibrating screen to ensure that even the finest solids are not lost. This two-step process greatly reduces the solids content of the mud and maintains the stability and performance of the drilling fluid.
2.Pre-treatment for centrifuge
It is also a powerful ‘helper’ for the centrifuge. The mud cleaner pre-treats the mud and reduces the workload of the centrifuge. By pre-removing most of the solids particles, it allows the centrifuge to focus on finer separation tasks. This synergy not only improves the overall separation efficiency of the solids control system, but also ensures the high quality of the drilling fluid. Without proper pre-treatment by the mud cleaner, the centrifuge would be overwhelmed by the excessive solids load, resulting in reduced efficiency and possible damage.
3.The regulation of mud performance
Another key role of the mud cleaner is to regulate the performance of the mud. It helps stabilise the density, viscosity and sand content of the drilling fluid. In different stages of drilling, there are different requirements for mud performance. For example, at the initial drilling stage, a lower viscosity mud may be required to ensure that the drill bit can cut through the formation smoothly; while as the drilling depth increases and the formation pressure increases, it is necessary to appropriately increase the density and viscosity of the mud to balance the formation pressure and prevent blowouts. By precisely removing solid-phase particles, the mud cleaner can flexibly adjust the mud’s various performance indexes, so that it is always suitable for the current drilling conditions, and ensure the safe and efficient advancement of drilling operations.
4.Safeguard drilling safety
Solid-phase particles in the mud if a large number of accumulation, it is very easy to cause downhole complex conditions, such as stuck drill, well collapse and other accidents. The mud cleaner effectively avoids these risks by continuously and efficiently removing solid-phase particles and maintaining good mud performance. Stable mud ensures the normal operation of the drill bit, carries rock chips to the surface in time, and prevents the accumulation of rock chips at the bottom of the well, thus building a solid foundation for the smooth drilling of the well. In challenging operational scenarios such as deep-sea drilling and drilling in complex formations, the mud cleaner’s role in safety and security is becoming more and more prominent, which gives more peace of mind every time you drill and helps the mining business to move forward steadily.
To sum up, the mud cleaner has become an indispensable core member of the solids control system by virtue of its excellent performance in solid phase particle removal, centrifuge pre-treatment, mud performance regulation and drilling safety guarantee, and has been escorting all kinds of projects involving mud treatment.
二.How the mud cleaner works

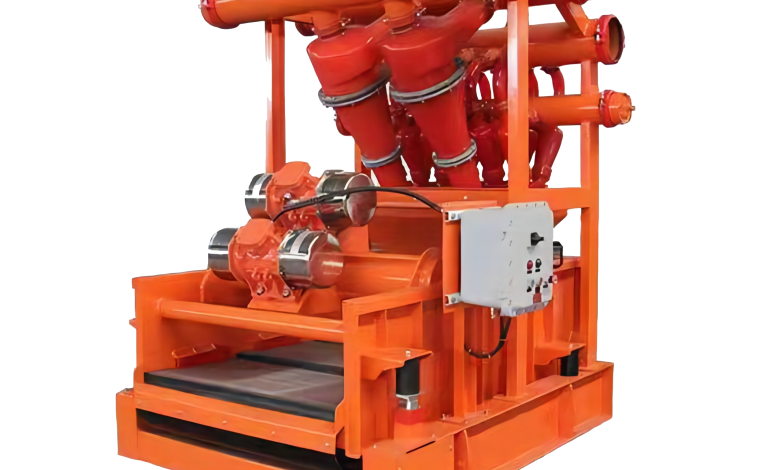

When the slurry containing solid phase particles enters the cyclone tangentially from the inlet at a certain pressure, it will form a high-speed rotating liquid flow inside the cyclone. During the high-speed rotation, due to centrifugal force, the solid-phase particles in the slurry are subjected to outward centrifugal force, while the liquid phase is subjected to relatively small centrifugal force. Under the action of centrifugal force, the slurry forms internal and external cyclone in the cyclone. The solid-phase particles in the outer cyclone are continuously concentrated and separated during the downward flow, and finally discharged from the bottom flow port of the cyclone; the liquid phase in the inner cyclone flows out from the overflow port of the cyclone and enters the subsequent treatment process. The mixture of solid particles and part of the liquid phase discharged from the cyclone bottom outlet will enter the vibrating screen for further processing. Vibrating screen produces high frequency vibration through motor or other driving device, so that the screen surface produces up and down or horizontal direction vibration. This vibration will make the particles in the mixture falling on the screen surface jump and slide, so that the particles can better contact the screen mesh and improve the screening efficiency.
Through the organic combination of the centrifugal separation of the cyclone and the screening action of the vibrating screen, the mud cleaner firstly separates most of the solid-phase particles initially by the cyclone, and then the vibrating screen finely screens the underflow of the cyclone, which realises the high efficiency of separating and removing the solid-phase particles in the mud, so as to achieve the purpose of cleaning the mud, ensure the performance and quality of the drilling fluids, and meet the needs of drilling operations.
三.Advantages of Mud Cleaner
1.Highly efficient purification capacity
The primary advantage of the mud cleaner is its excellent purification efficiency. It can accurately deal with all kinds of solid-phase particles in the mud, from fine silt to larger-sized rock chips, without missing any. Compared with traditional single filter equipment, it adopts a dual-stage processing mode combining cyclone and vibrating screen, which greatly improves the purification effect. The cyclone uses centrifugal force to fling most of the heavier solid-phase particles towards the outer wall and out through the underflow opening, while the vibrating screen further screens the cyclone underflow finely, ensuring that even tiny solid-phase impurities are difficult to escape.
2.Significant space saving

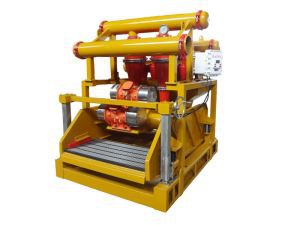

In all kinds of engineering sites, the space layout is often subject to many restrictions, especially in special scenarios such as offshore drilling platforms, urban underground construction, etc., where space constraints are a common problem. The compact design of the mud cleaner usually integrates the cyclone, vibrating screen and related connecting pipes and control components into a relatively independent unit. This three-in-one structure compared to the separate arrangement of the cyclone, vibrating screen and other equipment, greatly saving the footprint.
3.Excellent adaptability
Different engineering fields, geological conditions and construction stages have different characteristics and treatment requirements for mud. With its flexible design, the mud cleaner shows great adaptability. On the one hand, it can accurately adapt to different mud conditions by adjusting the working pressure of the cyclone and replacing the vibrating screen with different mesh according to the density, viscosity, solid phase content and other parameters of the mud. In oil extraction, when the drilling depth increases and the formation conditions change, the nature of the mud will also change, the mud cleaner can adjust its own parameters in real time, and continuously and efficiently process the mud.
4.Durable and economical
From the perspective of long-term operating costs, the mud cleaner has significant advantages. First of all, its main structure is mostly made of high-strength steel and wear-resistant alloy materials, able to withstand the erosion of corrosive media in the mud and the frequent impact of solid-phase particles. Take the cyclone as an example, its inner wall usually adopts special wear-resistant coating or ceramic lining, to ensure that in a long time of high-speed rotation, processing a large number of solid-phase particles, but still maintain a good working condition, reducing the wear and tear due to the need for frequent replacement of equipment components.
四.Application areas of mud cleaners
1.Oil and Gas Extraction
In oil and gas drilling projects, from deep well drilling on land to deep sea mining in the ocean, every time the drill bit goes deep into the ground, it will bring out a large amount of drilling mud mixed with rock chips and silt. In this process, the mud cleaner makes use of its highly efficient purification ability to precisely remove solid-phase particles from the mud and ensure stable performance of the drilling fluid. On the one hand, it prevents solid-phase particles from excessively abrading drill bits, drill pipes and other downhole equipment, extending the service life of the equipment and reducing the high costs associated with frequent equipment replacement. On the other hand, stable mud performance helps to maintain the stability of the well wall, reducing the probability of well collapse, stuck drilling and other complex downhole accidents, ensuring the safe and efficient continuation of drilling operations, and safeguarding the valuable oil and gas resources extraction.
2.Building construction
In the foundation piling stage of large-scale construction projects such as high-rise buildings and bridges, a large amount of mud needs to be injected into the ground to assist the construction of pile foundation. The mud cleaner can clean up the impurities in the mud in real time to maintain the proper viscosity and density, ensure the mud can be circulated smoothly, and bring the waste residue generated in the piling process out of the ground in time to avoid the accumulation in the pile holes, which will affect the quality and construction progress of the pile foundation.
3.Mining
In the mining process, whether open pit mining or underground mining, ore extraction, transport will produce a large number of tailings slurry containing slag, rock debris. Slurry cleaner used in tailings processing link, can effectively separate the solid phase tailings, on the one hand, to recover the available mineral resources, reduce resource waste, improve the economic benefits of the mine; on the other hand, after purification of the tailings water can be recycled, reduce the consumption of water resources of the mines, and at the same time, reduce the untreated tailings slurry directly discharged on the neighbouring soils, water bodies caused by environmental pollution, to help the mining industry to achieve sustainable development.
4.Non-excavation technology construction
The Slurry Cleaner stands out for its compact structural design, high adaptability and flexibility. It can operate efficiently in limited space, accurately deal with the mud generated during the construction process, remove the solid-phase particles in a timely manner, prevent the mud from silting up in the pipeline and tunnel, ensure the smooth progress of the construction, reduce the impact on the city’s ground traffic and residents’ lives, and make silent contributions to the construction of urban infrastructure.
5.Shield tunnel construction
Shield machine in tunnel boring, will cut a large number of soil to produce shield mud, mud cleaner as a shield construction equipment, bear the important task of purifying the mud. It separates the dirt particles in the slurry effectively, so that the slurry can be repeatedly recycled for the shield machine’s cutter cooling, dirt improvement and other links, which not only ensures the stable operation of the shield machine, improves the digging efficiency, but also reduces the cost of new slurry preparation, reduces the slurry emissions at the construction site, and provides a strong support for the rapid and green construction of the tunnel project.
