In the field of oil drilling, mud pump is the key equipment to ensure the smooth operation of drilling. In the field of building construction, mining is also inseparable from the support of mud pumps. To ensure that the mud pump always maintains a good working condition, stable and efficient operation, the selection of suitable mud pump parts is crucial. The right parts can not only extend the service life of the mud pump, reduce maintenance costs, but also improve productivity and ensure the smooth progress of industrial production. Next, we will discuss in depth how to choose the right mud pump parts.
一.key factor in choosing the right parts
When selecting mud pump parts, the demand for working conditions is the first key factor to consider, in which the precise matching of flow and pressure is particularly important. Different operating scenarios have different requirements for the flow and pressure of mud pumps, and only by accurately grasping these requirements can we ensure that mud pumps operate efficiently and stably.
Taking oil drilling operations as an example, as the drilling depth increases, the mud needs to overcome greater resistance to be transported to the bottom of the well, so the pressure requirements are also higher. If the drilling depth reaches thousands of metres, it is necessary to choose mud pump parts that can provide high pressure to ensure that the mud can reach the bottom of the well smoothly, and play its role of cooling the drill bit and carrying drill cuttings. At the same time, the flow rate also needs to be adjusted according to the actual situation of drilling. If the flow rate is too small, the drill cuttings cannot be brought out of the ground in time, which may lead to clogging at the bottom of the well, affecting the drilling progress; if the flow rate is too large, it will not only waste energy, but also cause scouring of the well wall, which affects the stability of the well wall.
Mud transport distance is also an important factor in determining the flow rate and pressure requirements. In mining, if the slurry needs to be transported to a processing plant several kilometres away, the pressure loss of the slurry during transport needs to be considered. In order to ensure that the slurry can reach its destination smoothly, it is necessary to select slurry pump parts with sufficient head and flow rate. Generally speaking, the longer the conveying distance, the higher the required pressure, and the flow rate needs to be increased accordingly to ensure that the slurry can be transported to the place in the specified time.
If the flow rate and pressure do not match, it will bring many problems to the operation of the mud pump. If the flow rate is too large and the pressure is insufficient, the slurry may not be able to overcome the resistance of the pipeline, resulting in poor transport, or even unable to transport to the specified location. In construction, if the flow of the mud pump is too large but the pressure is not enough, the mud can not be transported to the construction parts of high-rise buildings, which will affect the construction progress. On the contrary, if the pressure is too large and the flow rate is too small, it will cause energy waste, and at the same time, it may also cause excessive wear and tear on the parts of the mud pump, shortening the service life of the parts. In oil drilling, if the pressure is too high and the flow rate is too low, the drill bit will not get sufficient cooling and lubrication, accelerating the wear of the drill bit and increasing the drilling cost.
The characteristics of mud play a decisive role in the selection of mud pump parts, different properties of the mud need to be adapted to different materials and types of parts. Mud viscosity, density, corrosivity, containing particles and other characteristics, will have an impact on the working environment and performance requirements of the parts.
The viscosity of the slurry is one of the most important factors affecting the selection of parts. High-viscosity mud is less fluid and requires more power to drive, so the strength and wear resistance of the parts at the power end and fluid end of the mud pump are required to be higher. In some oil mining operations, crude oil mixed with water, mud and sand to form a high viscosity mud, at this time should choose high strength, good wear resistance materials to make pistons, bushings and other parts, such as high strength alloy steel or ceramic materials. These materials can withstand the friction and shear of high-viscosity mud, reduce wear and tear of the parts, and extend the service life of the parts. In contrast, low-viscosity slurries cause relatively little wear on parts, but may require higher sealing performance to prevent slurry leakage.
The density of the slurry can also affect part selection. Denser slurries, which weigh more, place higher demands on the mud pump’s load-bearing capacity. In mining, containing a large number of metal ore particles of mud density, this time you need to choose a high strength, strong bearing capacity of the pump body and impeller and other parts, to ensure that the mud pump can operate normally. Usually cast steel or high-strength alloy materials will be used to make these parts to meet the requirements of its strength and load-bearing capacity.
Corrosivity is another important characteristic of mud. If the slurry is corrosive, it will produce chemical erosion on the surface of the parts, resulting in damage to the parts. In the chemical industry, some slurries containing acidic or alkaline substances are very corrosive to the parts, in which case corrosion-resistant materials should be selected to make the parts, such as stainless steel, titanium alloy or special engineering plastics. These materials can resist the corrosion of the mud to ensure the performance and life of the parts. For acidic mud containing chloride ions, ordinary stainless steel may occur pitting and stress corrosion cracking, so it is necessary to choose stainless steel with high molybdenum content or other corrosion-resistant alloy materials.
Mud containing particles should not be ignored. Mud containing solid particles can cause serious wear and tear on parts, especially at high flow speeds. In mining and construction, the slurry often contains a large number of gravel particles, these particles will be like sandpaper on the surface of the parts to wash, resulting in increased wear of the parts. In order to cope with this situation, it is necessary to choose materials with good wear resistance to make parts, such as high chromium alloy and tungsten carbide. These materials have high hardness and wear resistance, and can effectively resist the abrasion of particles. Special treatment processes can also be used on the surface of the parts, such as spraying wear-resistant coatings and carrying out surface hardening treatment, to further improve the wear resistance of the parts.
3.Durability considerations: the choice of materials and processes
Durability is a key consideration when choosing mud pump parts, and the durability of the parts depends largely on the choice of material and manufacturing process. Different materials in the abrasion resistance, corrosion resistance, strength and other aspects of the existence of significant differences, advanced manufacturing process can further enhance the performance of the parts.
In the choice of material, cast iron is a common material, with low cost, casting performance and other advantages, but its wear resistance and corrosion resistance is relatively poor, the strength is also low. Therefore, cast iron is usually used in the manufacture of some of the performance requirements are not high, the working environment is relatively mild mud pump parts, such as some small mud pump pump body, shell and so on.
Cast steel has high strength and toughness, abrasion resistance and corrosion resistance is also better than cast iron, suitable for the manufacture of parts to withstand large loads and impacts, such as the crankshaft of the mud pump, connecting rod, etc.. In some large mud pumps, crankshafts and connecting rods need to withstand huge alternating loads, the use of cast steel materials can ensure that they maintain stable performance over a long period of time and are not prone to fracture or deformation.
Alloy materials are a high-performance alternative, which improves material properties by adding other elements, such as chromium, nickel and molybdenum, to the base metal. With excellent wear resistance, corrosion resistance and high strength, alloy materials are commonly used to make mud pump parts that operate in harsh environments. In oil drilling, due to the mud contains a variety of corrosive substances and solid particles, the performance requirements of the parts are extremely high, so alloy materials are often used to make pistons, bushings, valves and other key parts. High chromium alloy has excellent wear resistance and corrosion resistance, can contain a large number of gravel particles and corrosive media in the mud for a long time; nickel-based alloys have a good resistance to high temperature, corrosion resistance, suitable for high temperature, high pressure and corrosive working environment.
4.Principle of adaptability: tacit co-operation between parts
In the operation of the mud pump, the mutual adaptation between the parts is crucial, they are like closely collaborating team members, only tacit co-operation to ensure the normal operation of the mud pump.
The accuracy of the piston and liner is one of the key factors affecting the performance of the mud pump. Piston reciprocating movement in the liner, the two need to maintain good sealing performance to prevent mud leakage. If the piston and liner fit clearance is too large, it will lead to mud leakage, reducing the efficiency and pressure of the mud pump; if the fit clearance is too small, the piston will produce excessive friction in the movement process, resulting in increased wear of the parts, and may even be jammed. Therefore, when selecting pistons and bushings, it is necessary to ensure that their dimensional accuracy and fit accuracy meet the requirements. Usually according to the size and tolerance requirements of the piston, select the matching bushing, and in the installation process, strict control of the fit gap to ensure that the piston and the bushing with a good fit.

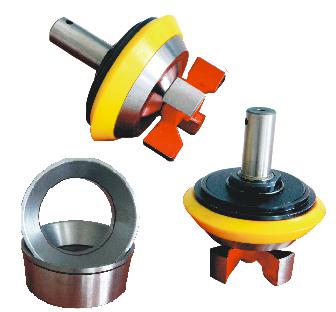

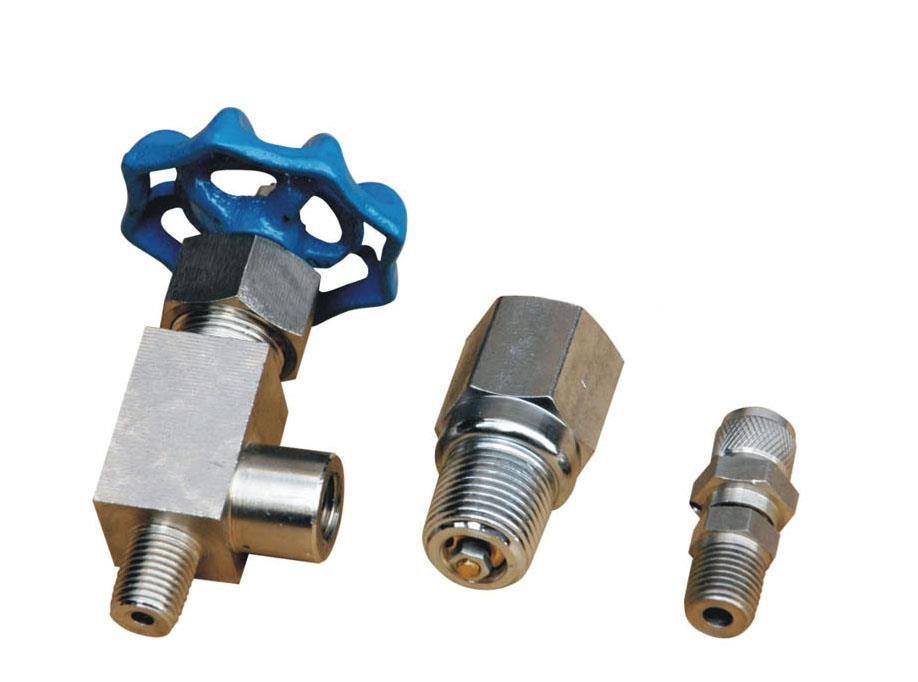

Valve and pipe connection fit should not be ignored. Valve in the mud pump system plays a role in controlling the mud flow and pressure, it must be closely connected with the pipeline, reliable, to ensure the smooth flow of mud. If the connection between the valve and the pipeline does not match, leakage, clogging and other problems may occur, affecting the normal operation of the mud pump. When selecting valves and pipelines, you need to consider their pipe diameter, connection method, sealing performance and other factors to ensure that the two can be perfectly adapted. For valves and pipelines connected by flanges, it is necessary to ensure that the size of the flanges, the location and number of bolt holes, etc. are identical, and to use appropriate sealing gaskets to ensure the sealing of the connection.
The matching between the power end and the fluid end also directly affects the performance of the mud pump. The power end provides power for the fluid end, driving the piston to carry out reciprocating motion, so as to realise the suction and discharge of mud. If the output power of the power end is insufficient to meet the working requirements of the fluid end, the mud pump will not operate normally; on the contrary, if the output power of the power end is too large, and the bearing capacity of the fluid end is limited, it will cause excessive pressure on the parts of the fluid end, resulting in damage to the parts. Therefore, in the selection of the power end and the fluid end of the parts, according to the working parameters of the mud pump and working condition requirements, reasonable matching of their power and performance parameters, to ensure that both can work together.
In addition, the various parts of the mud pump in the installation process also need to be carried out in strict accordance with the operating procedures to ensure that they are installed in the correct position and firmly fixed. If the parts are not installed properly, it may lead to unstable operation of the mud pump, excessive vibration, noise increase and other problems, and even cause safety accidents. When installing the crankshaft, it is necessary to ensure that its axis is parallel to the axes of other parts and that the tightening torque of the fixing bolts meets the requirements to prevent the crankshaft from shifting or loosening during operation.
